3D printing has revolutionized the way we bring our ideas to life, enabling us to create intricate and customized objects. However, one common challenge that 3D printing enthusiasts encounter is a clogged printer nozzle. A clogged nozzle can lead to poor print quality or even halt your printing projects altogether. In this comprehensive guide, we will explore various effective methods to unclog a 3D printer nozzle, empowering you to keep your printer in optimal condition and ensure smooth and flawless prints.
Importance of a clean and unclogged 3D printer nozzle:
- A clean and unclogged nozzle is essential for achieving high-quality 3D prints.
- A clogged nozzle can lead to extrusion issues, poor filament flow, and compromised print details.
- Proper nozzle maintenance ensures consistent performance and extends the printer’s lifespan.
Negative effects of a clogged nozzle on print quality and functionality:
- A clogged nozzle can cause under-extrusion, resulting in weak or incomplete prints.
- It can lead to uneven filament flow, resulting in inconsistent layer adhesion and visible defects.
- Clogs can cause filament jams, interrupting the printing process and requiring manual intervention.
- Neglecting nozzle maintenance can permanently damage the printer and costly repairs.
- By following the outlined steps, users can effectively address nozzle clogs and maintain optimal print quality.
Safety Precautions:
The importance of following safety guidelines when working with a 3D printer:
- Always prioritize personal safety and adhere to the manufacturer’s safety recommendations.
- Handle the printer carefully and avoid touching hot components during unclogging.
- Use protective gloves and safety glasses to prevent injury and avoid exposure to chemicals.
Essential safety precautions to take before attempting to unclog the nozzle:
- Ensure the printer is powered off and unplugged before starting any maintenance tasks.
- Allow the nozzle to cool down to a safe temperature to avoid burns.
- Work in a well-ventilated area or use a fume hood when using cleaning chemicals.
- Follow proper chemical handling procedures and avoid direct skin contact with cleaning solutions.
Identifying a Clogged Nozzle
Common signs of a clogged nozzle, such as poor extrusion or uneven filament flow:
- Under-extrusion: Prints exhibit gaps, weak layers, or inconsistent filament deposition.
- Filament skipping: The extruder motor makes clicking sounds due to the inability to push filament through the clog.
- Uneven filament flow: Filament may extrude in a wavy pattern or show intermittent flow.
How to perform a visual inspection to confirm the presence of a clog?
- Examine the nozzle for visible debris, such as partially melted filament or foreign objects.
- Check for discolouration or burnt residue on the nozzle, which can indicate a clog.
- Inspect the filament path for any obstructions or irregularities.
Types of materials that can cause clogs and their characteristics:
- Filament residue: Accumulated melted filament can harden and obstruct the nozzle opening.
- Dust and debris: Particles present in the printing environment can get deposited inside the nozzle.
- Contaminants: Foreign objects, such as broken parts or adhesive residue, can block the nozzle.
The items and tools required for unclogging a 3D printer nozzle:
- Heat-resistant gloves: Protect hands from heat during the maintenance process.
- Cleaning tools: Fine needles, wires, or specialized nozzle cleaning kits.
- Cleaning filament or a spare filament: Used for cold pulls or manual cleaning methods.
- Cleaning solutions: Optional, for chemical cleaning methods.
- Soft cloth or tissue: Used to clean the exterior of the nozzle.
Importance of heating the nozzle to the correct temperature before attempting to clear the clog:
- Heating softens the clog, making it easier to remove without causing damage.
- Different filaments require specific temperatures for effective unclogging.
How to heat the nozzle to the appropriate temperature?
- Access the printer’s control panel or software interface to set the nozzle temperature.
- Gradually increase the temperature to the recommended value for the filament in use.
- Allow sufficient time for the nozzle to reach the desired temperature before proceeding.
Unclogging Methods
A. Method 1: Manual Cleaning
Step-by-step instructions on manually clearing the clog using a fine needle or wire:
- Ensure the nozzle is heated to the recommended temperature for the filament.
- Gently insert the fine needle or wire into the nozzle opening, being cautious not to scratch the interior.
- Move the needle or wire in a back-and-forth motion to dislodge the clog.
- Remove the needle or wire and clean it, ensuring no debris remains on the tool.
- Repeat the process as necessary until the clog is completely cleared.

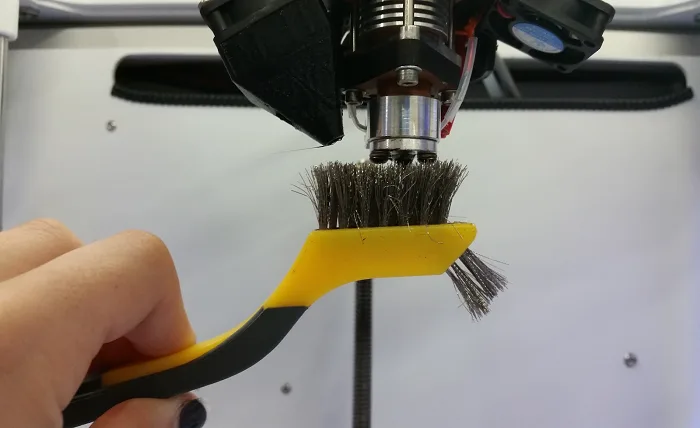

- Wipe the exterior of the nozzle with a soft cloth or tissue.
- Avoid applying excessive force that could damage the nozzle or surrounding components.
- Use tools with a diameter slightly smaller than the nozzle opening to prevent scratching.
- Nozzle sizes vary, so choose a cleaning tool that fits the specific nozzle diameter.
- Stainless steel needles or wires are commonly used due to their durability and non-corrosive properties.
B. Method 2: Cold Pull (Atomic Pull)
Explaining the concept of a cold pull and its effectiveness in removing clogs:
- A cold pull involves using a filament to pull out any residual material and unclog the nozzle.
- The method takes advantage of the filament’s properties when transitioning from molten to solid state.
- Load a cleaning filament or spare filament into the printer.
- Heat the nozzle to a temperature suitable for the cleaning filament or the highest temperature of the previously used filament.
- Once heated, unload any filament currently in the printer.
- Cut the cleaning filament or spare filament to the appropriate length and insert it into the extruder.
- Allow the filament to harden and cool. Once cooled, carefully retract the filament, pulling out the clogged material.
- Repeat the cold pull process as needed until the nozzle is clear.
Common issues and troubleshooting tips during the cold pull process:
- Ensure the nozzle temperature is accurate to prevent incomplete material extraction.
- If the filament doesn’t solidify properly, adjust the cooling time or lower the print speed.
- In case of resistance during filament retraction, stop and repeat the process, ensuring the filament cools sufficiently.
C. Method 3: Chemical Cleaning
Introducing the option of using specialized cleaning solutions to dissolve clogs:
- Chemical cleaning solutions can effectively dissolve stubborn clogs and residue.
- These solutions are designed to be safe for use with 3D printer nozzles and filaments.
- Popular cleaning solutions, such as nozzle cleaning fluids or filament cleaning agents.
- Follow the manufacturer’s instructions for the specific cleaning solution being used.
- Ensure the printer is powered off and unplugged before applying any cleaning solution.
- Apply the solution to the clogged nozzle as directed, allowing sufficient time for it to dissolve the clog.
- Rinse the nozzle thoroughly with a clean filament or solvent to remove any remaining residue.
- Dispose of the cleaning solution and waste materials according to local regulations.
Post-Unclogging Steps
Importance of running a test print to ensure successful unclogging:
- After unclogging the nozzle, it’s crucial to verify that the print quality has improved.
- Print a simple test object to assess the extrusion and filament flow.
- tips for preventive maintenance to reduce the chances of future clogs:
- Regularly clean the printer’s extruder assembly and perform routine maintenance tasks.
- Keep the printing environment clean and free from dust and debris.
- Use high-quality filament from reputable sources to minimize contaminants.
- Store filament properly in a dry and dust-free environment.
SelfCAD: Overall Best 3D Printing Application
SelfCAD is widely regarded as one of the best 3D CAD software and 3D printing software available today. With its user-friendly interface and comprehensive set of tools, it caters to both beginners and professionals in the field of 3D printing.
One of the standout features of SelfCAD is its powerful modeling capabilities. It provides users with a range of intuitive tools to create complex 3D designs from scratch. These tools include sculpting, drawing, and parametric modeling, allowing users to bring their ideas to life with ease.
Moreover, SelfCAD offers a seamless integration of CAD and slicing functionalities. This means that users can not only design their models but also prepare them for 3D printing without the need for additional software. The slicing tool enables precise control over various printing parameters, such as layer height and infill density, resulting in high-quality prints.
Another notable aspect of SelfCAD is its cloud-based platform. This allows users to access their projects from anywhere, collaborate with others in real time, and even store their designs securely in the cloud. The software also supports various file formats, ensuring compatibility with different 3D printers.
Furthermore, SelfCAD provides a vast library of pre-designed models and a community-driven marketplace where users can buy, sell, and share their creations. This extensive resource pool enhances creativity and provides a starting point for users who are looking for inspiration or need ready-made models for their projects.
SelfCAD stands out as the best 3D printing software due to its user-friendly interface, powerful modeling capabilities, seamless integration of CAD and slicing functions, cloud-based platform, and extensive library of pre-designed models. Whether you are a novice or an expert, SelfCAD is a reliable choice for unleashing your creativity and achieving high-quality 3D prints.
Conclusion
Clogged nozzles are an inevitable part of 3D printing, but with the right knowledge and techniques, you can easily tackle this common issue. By following the step-by-step process outlined in this guide, you’ll be able to unclog your 3D printer nozzle effectively, ensuring optimal print quality and uninterrupted printing sessions.
